PELLETIZING LINE
Usage：SJP series KRT plastic extruder machinable a variety of thermoplastic
Plastic, the machine is mainly used for extrusion, PC、PA、ABS、PP、PS、ABS、PP、PS、PE、PVC、PP-R、POM、PBT、PET、EVA、TPU.
Features: Special screw design, speed reducer and high power motor with high torque
To ensure that the mixing effect of the material and high output.
Can depend on user actual appliance configuration and configuration.

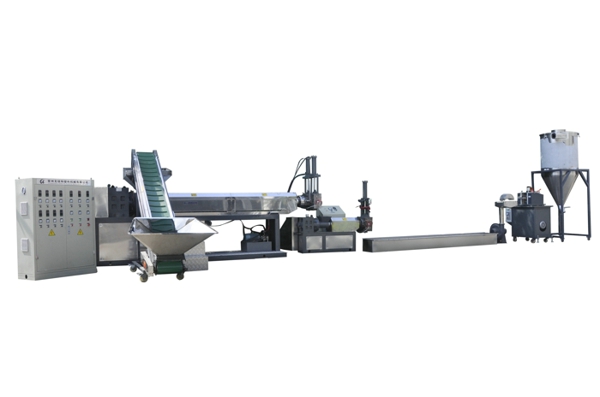

One line
conclude mother extruder,baby extruder,water cooling tank,blower,cutter.
Specification
|
Model |
Long diaratio |
Output（kg/h） |
Screw rotate Speed（r/min） |
Power（kw） |
Center height（mm） |
| KRT-SJP-80 | 28:1 | 100-120 | 70 | 18.5 | 700 |
| KRT-SJP-90 | 28:1 | 120-140 | 70 | 22-30 | 700 |
| KRT-SJP-100 | 28:1 | 140-170 | 70 | 30 | 750 |
| KRT-SJP-110 | 28:1 | 180-220 | 70 | 30-37 | 750 |
| KRT-SJP-120 | 28:1 | 200-240 | 70 | 37-45 | 750 |
| KRT-SJP-130 | 28:1 | 270-320 | 70 | 45-55 | 800 |
| KRT-SJP-140 | 28:1 | 350-430 | 70 | 55-75 | 800 |
| KRT-SJP-150 | 28:1 | 450-550 | 70 | 75 | 900 |
